| Model |

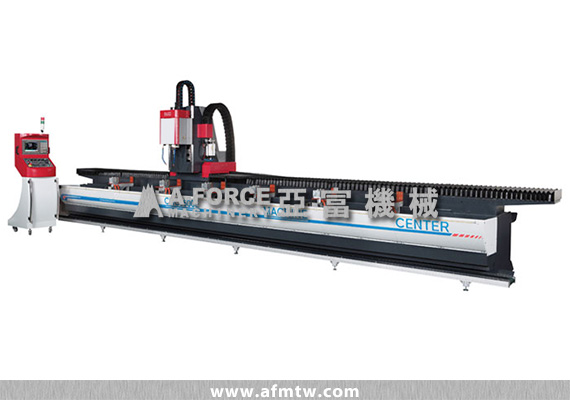

AF-CNC6500E (3 Axis) |
| X-Axis Travel (mm) |
3000 / 4000 / 5000 / 6000 (opt.) |
| Y-Axis Travel (mm) |
300 |
| Z-Axis Travel (mm) |
200 |
Spindle Center To
Table Surface (mm) |
Min. 50 and Max. 350 |
| Working Table Type |
1 Set of vise / per meter |
| Working Table Size (mm) |
300 x 3000 ~ 6000 |
| Table Heigh From Floor (mm) |
850 |
| Spindle Speed (R.P.M.) |
18000 |
| Spindle motor (Kw) |
5.5 |
| Spindle Taper |
ISO 30 |
Rapid Traverse
(X,Y,Z / (M/min)) |
X-Axis: 50 (opt.100 )
Y-Axis: 24
Z-Axis: 24 |
| 3-Axis Servo Motors (Kw) |
X-Axis: 1
Y-Axis: 1
Z-Axis: 1 |
| Cutting-Feed Rate (mm/min) |
F: 1~5000 |
| Tool Storing Capacity |
8 tools |
| Tool Shank |
ISO 30 |
| Air Pressure (kgs/cm²) |
6 |
| Machine Dim. (mm) |
4800 ~ 7800 x 1400 x 2300 |
| Packing Dim. (mm) |
5000 ~ 8000 x 1600 x 2300 |
| Machine Weight (kgs) |
3500 ~ 5500 |
| *All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. |
