Hydraulic Punching Machines |
| |
Hydraulic Punch Presses
... |
| |
|
| |
|
| |
 |
 |
 |
|
| Model |

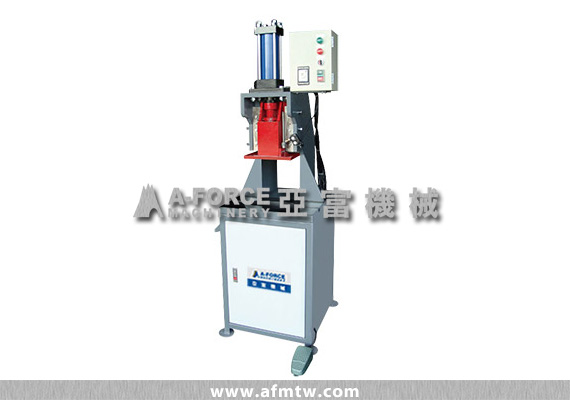

AFO-560-7A |

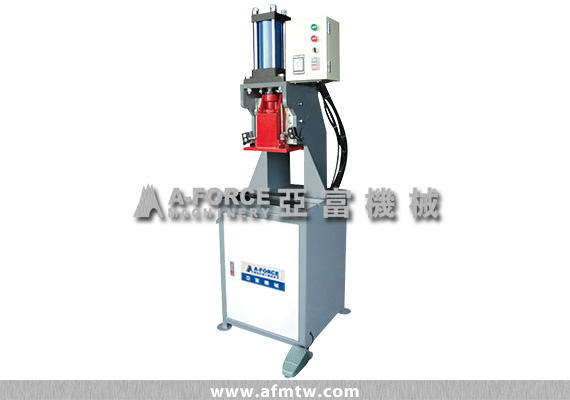

AFO-560-10A |
AFO-560-15A |
|
| Capacity (tons) |
7 |
10 |
15 |
|
| Stroke Length (mm) |
150 |
150 |
150 |
|
| Die Height (mm) |
250 |
250 |
250 |
|
| Bolster Area (mm) |
500 x 250 |
500 x 250 |
600 x 300 |
|
| Motor (HP x P) |
3HP x 4P |
5HP x 4P |
5HP x 4P |
|
| Machine Dim. (mm) |
530 x 500 x 1700 |
530 x 500 x 1700 |
630 x 600 x 1750 |
|
| Machine Weight (Kgs) |
350 |
365 |
400 |
|
| *All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. |
|
|
 |
| |
|
| |
 |
 |
 |
 |
| Model |

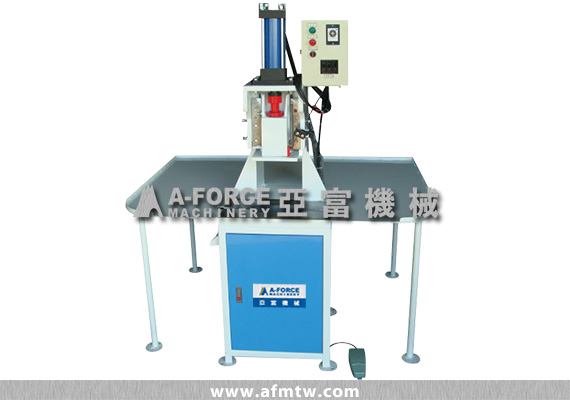

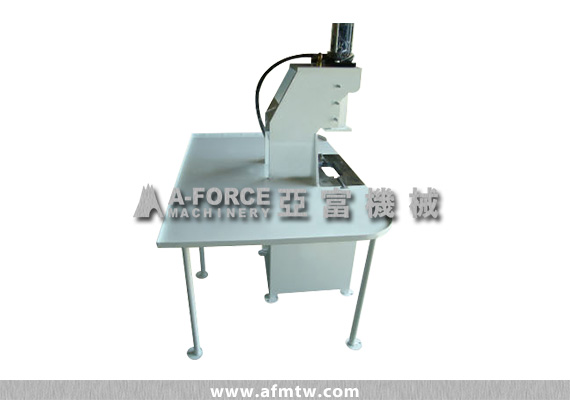

AFO-561-7A |

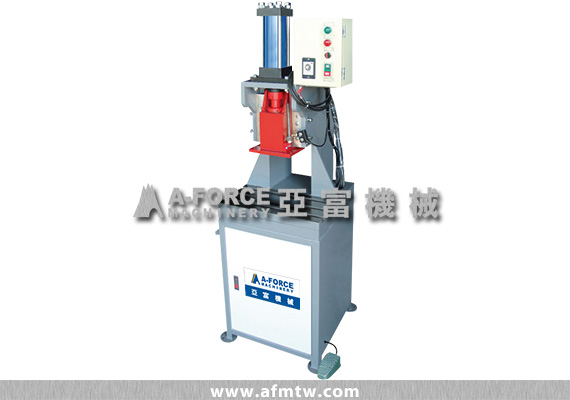

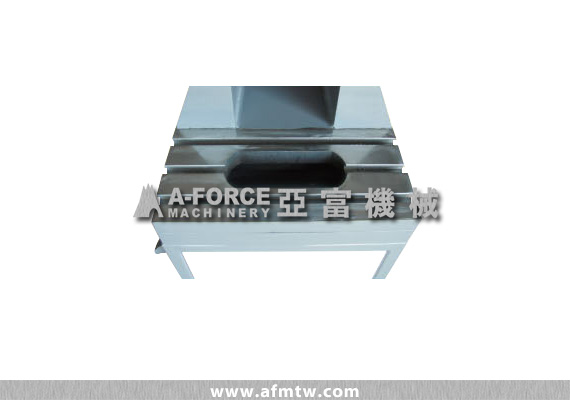

AFO-560-7B |

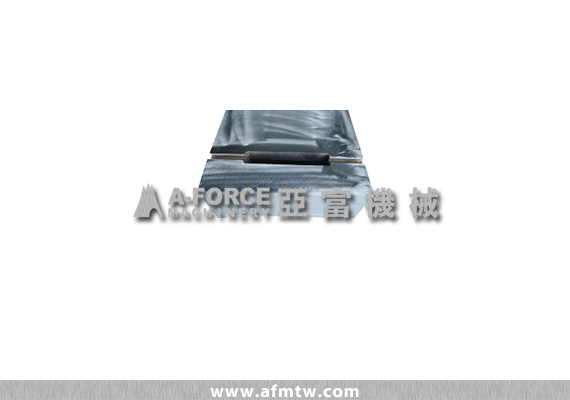

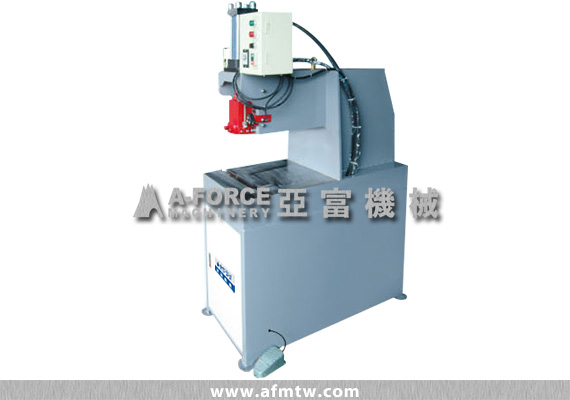

AFO-560-10B |

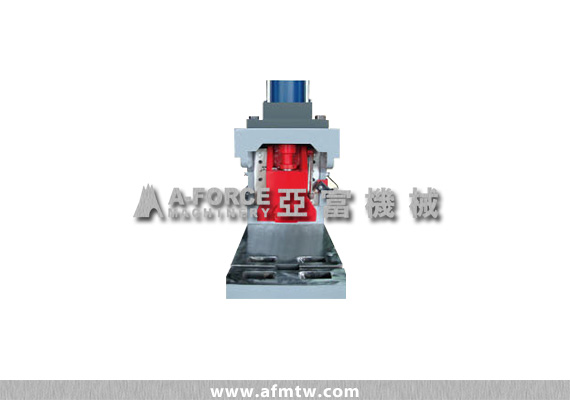

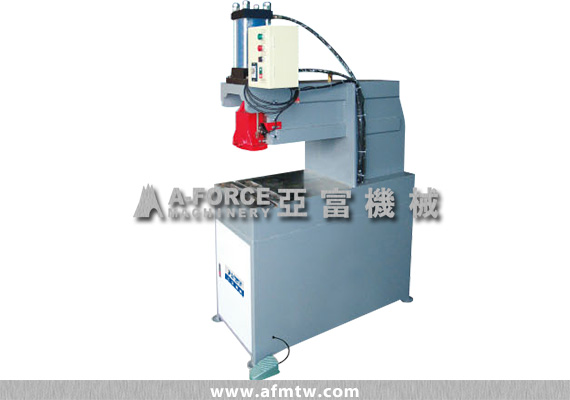

AFO-560-15B |
| Capacity (tons) |
7 |
7 |
10 |
7 |
| Stroke Length (mm) |
150 |
150 |
150 |
150 |
| Die Height (mm) |
250 |
250 |
250 |
250 |
| Bolster Area (mm) |
500 x 250 |
500 x 250 |
500 x 500 |
500 x 600 |
| Motor (HP x P) |
3HP x 4P |
5HP x 4P |
5HP x 4P |
5HP x 4P |
| Machine Dim. (mm) |
1500 x 1000 x 1700 |
530 x 500 x 1700 |
530 x 1025 x 1800 |
530 x 1125 x 1800 |
| Shank Hole |
|
|
38 |
38 |
| Area |
1500 x 1000 |
|
|
|
| Features |
附盤面,
約放置5~7組模具 |
附T型溝 |
台盤面拉深 |
台盤面拉深 |
| *All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. |
|
|
|
| |
|
|
