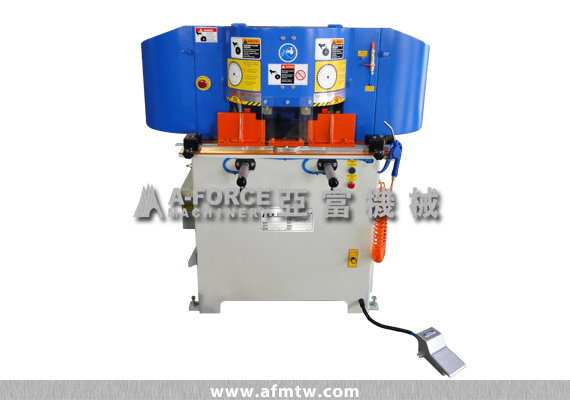

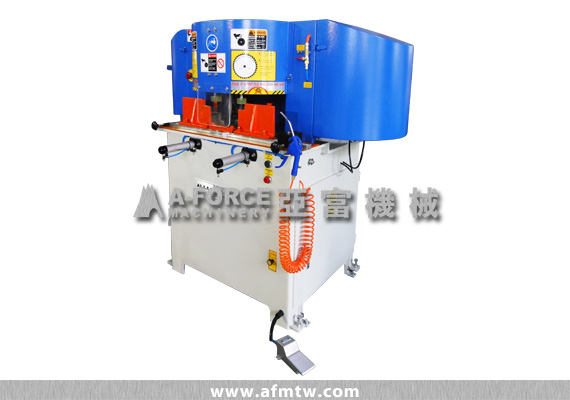

45°Double-Blade Angular Sawing Machines |
| |
AF-14A/B Type
- To operate the machine, simply treadle on the foot switch the machine will automatically perform clamping and cutting for convenient operation.
- Cutting feed is driven by an air/hydraulic combination power for smooth feed speed.

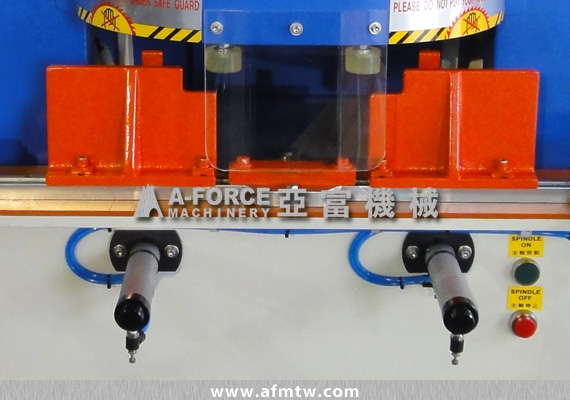

- Vertical and horizontal workpiece clamping design ensures extremely firm clamping for any type of aluminum workpiece.
- Workpiece clamping pressure is adjustable to eliminate aluminum deformation problem.
- Automatic oil mist cooling for sawblades provides burr-free surface of cut while extending sawblade life.

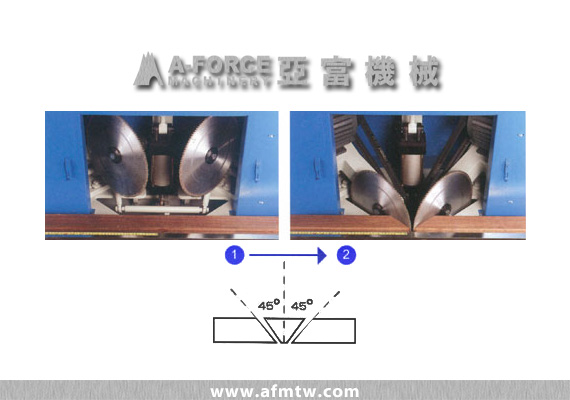

- Double sawblades construction provides fast cutting.time saving and greatly upgrades efficiency.
- Foot switch control for automatic workpiece clamping and cutting.
- Designed for cutting long and short workpieces. |
| |
|
| |
|
| |
 |
|
| Model |
AF-14A |
AF-14B |
| Cutting Angle |
45° |
45° |
| Saw Blade Size |
14" x Ø1" x 2片 |
18" x Ø1" x 2片 |
| Table Area (mm) |
870 x 260 |
870 x 290 |
| Table Height (mm) |
800 |
800 |
| Motor |
2 HP x 2 |
2 HP x 2 |
| Air Pressure (kg/cm2) |
6 |
6 |
| Saw (R.P.M.) |
3300 |
3300 |
| Max. of Cut (mm) |
100x100, 80x120, 60x180 |
130x150, 100x180, 70x250 |
| Machine Dim. (mm) |
1370 x 820 x 1310 |
1520 x 930 x 1440 |
| Packing Dim.(mm) |
1490 x 950 x 1510 |
1640 x 1050 x 1640 |
| N.W. / G.W. (Kgs) |
310 / 410 |
500 / 610 |

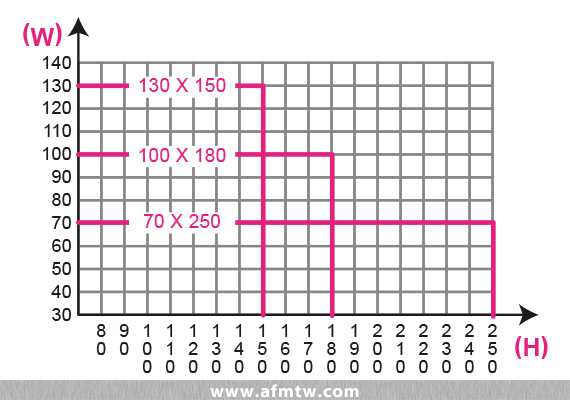

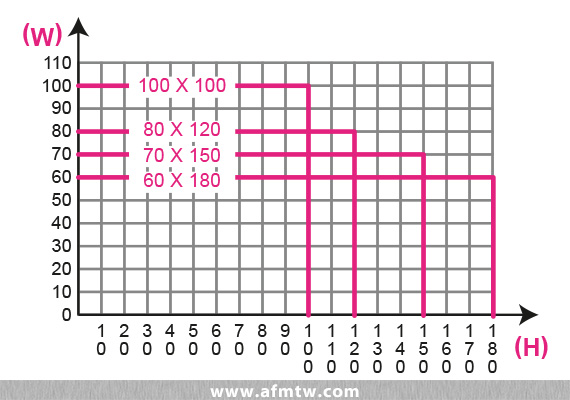

| Cutting Capacity Chart |
 |
|
| *All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. |
|
 |
| |
 |
|
|
|
| |
|
